Horizontal centrifugal pumps

Pompe centrifughe orizzontali

TM/MB/O series

Features
PP-PVC -PVDF construction materials

The TM/MB centrifugal electric pumps are horizontal monobloc pumps with external mechanical seal.
Their particular construction with open impeller allows pumping highly acidic or alkaline fluids, including very dirty liquids containing small suspended solid particles and with viscosity up to 500 cps.

Fields of application
Chemical, petrochemical, pharmaceutical, paper, textile, food, sugar, dairy, electronic, galvanic, water treatment industries, as well as other hazardous chemical applications.

Technical data
Flow rate (Q) up to 150 m³/h w.g.
Pressure head (H) up to 45 m
Temperature (T) up to 95°C
Rotation speed 2900 RPM

TMMBO
Pompe centrifughe orizzontali

Serie TX

Features
AISI 316L construction materials

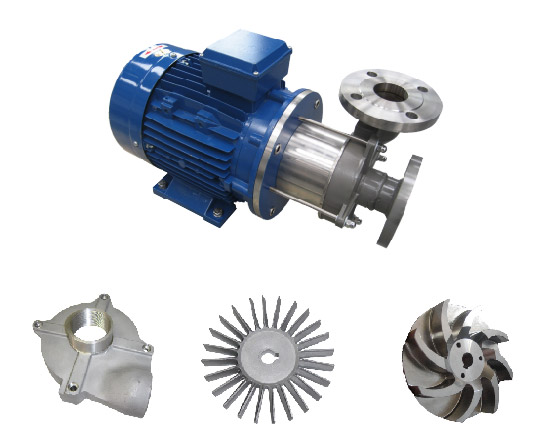

The TX series is a range of horizontal open-impeller centrifugal electric pumps with external mechanical seal.
The TX electric pumps were designed to be used with acidic and alkaline liquids, solvents, viscous products, clear products and products with suspended solid particles. They are made entirely in AISI 316L with low carbon content.
The body of the pump and the impeller are obtained by lost wax, micro-fusion casting.
Available with 6-8-12-24 impeller blades

Fields of application
Chemical, petrochemical, pharmaceutical, paper, textile, food, sugar, dairy, electronic, galvanic, water treatment industries, as well as other hazardous chemical applications.

Technical data
Flow rate (Q) up to 60 m³/h w.g.
Pressure head (H) up to 40 m
Temperature (T) up to 120°C
Rotation speed 2900 RPM

 TX
