Centrifugal pump with double seal
DTM series
Features
PP-PVC -PVDF construction materials
The DTM centrifugal electric pumps are horizontal monobloc electric pumps, derived from the "TM" series, with double mechanical seal in a flushing pre-chamber with mains water that is used to cool and keep the mechanical seals clean, preventing the formation of crystals and impurities.
Applications involving highly corrosive process liquids where leakage is not at all permitted necessitate a double seal system with mains water flushing that guarantees cooling and cleaning of the seal on the side of the process fluid and its duration over time.
Their particular construction with open impeller allows pumping highly acidic or alkaline fluids, including very dirty liquids with apparent viscosity up to 500 cps, and with small suspended solid particles.
Fields of application
They are widely used in the chemical, galvanic, textile, paper industries, and also for water purification and treatment plants.
Technical data
Flow rate (Q) up to 100 m³/h w.g.
Pressure head (H) up to 40 m
Temperature (T) up to 90°C
Rotation speed 2900 RPM
Serie DTX
Features
AISI 316L construction materials

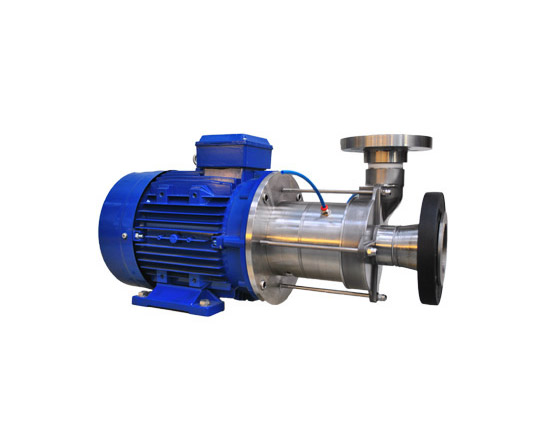

The DTX centrifugal electric pumps are horizontal monobloc electric pumps, derived from the "TX" series, with double mechanical seal in a flushing pre-chamber with mains water that is used to cool and keep the mechanical seals clean, preventing the formation of crystals and impurities.
Applications involving highly corrosive process liquids where leakage is not at all permitted necessitate a double seal system with mains water flushing that guarantees cooling and cleaning of the seal on the side of the process fluid and its duration over time.
Their particular construction with open impeller allows pumping highly acidic or alkaline fluids, including very dirty liquids with apparent viscosity up to 500 cps, and with small suspended solid particles.
Fields of application
They are widely used in the chemical, galvanic, textile, paper industries, and also for water purification and treatment plants.
Technical data
Flow rate (Q) up to 55 m³/h w.g.
Pressure head (H) up to 40 m
Temperature (T) up to 120°C
Rotation speed 2900 RPM
